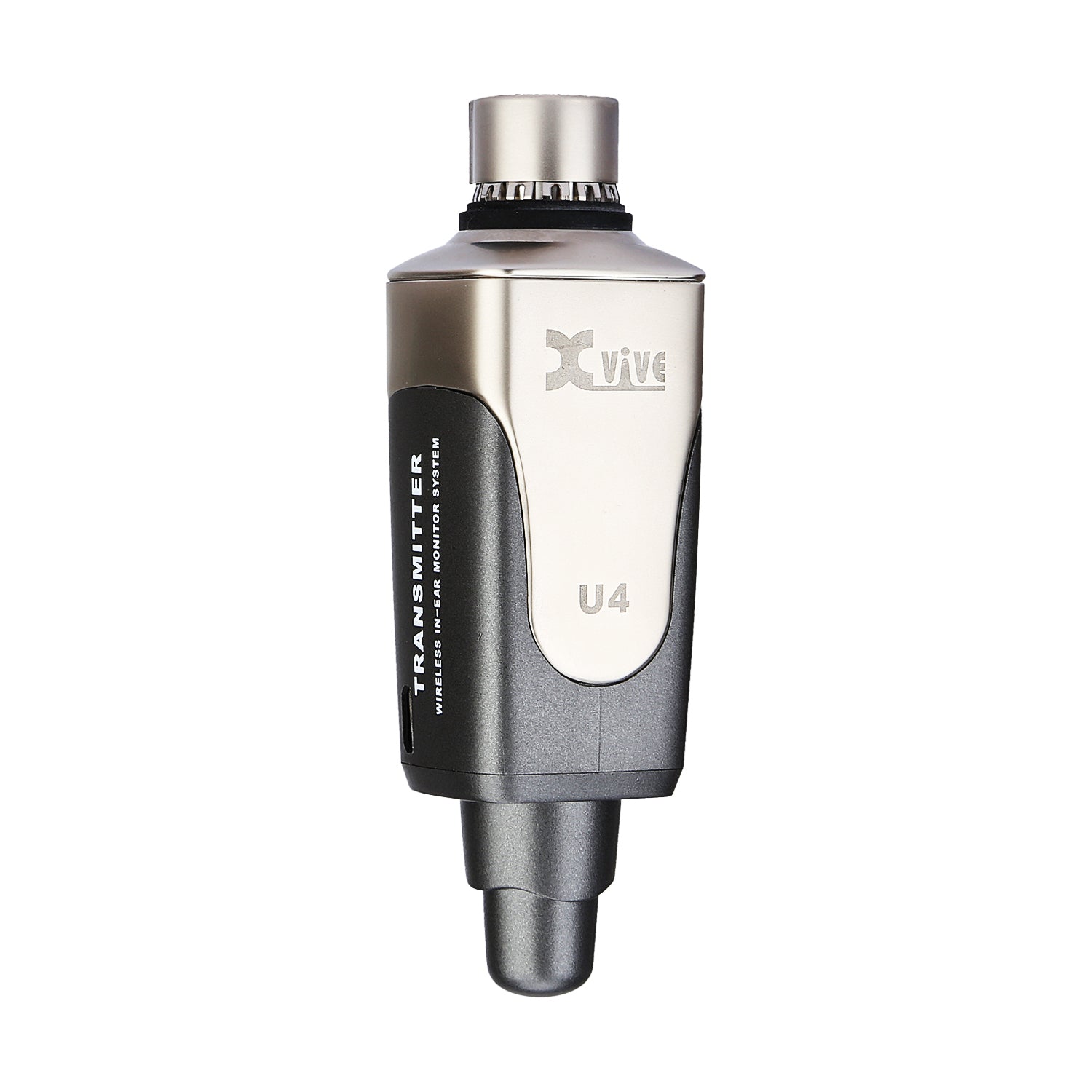

Xvive In-Ear Monitor Wireless Transmitter

• 2.4Ghz wireless transmitter
• Use in conjunction with Xvive U4 receivers
• Send audio wirelessly to performers on stage
• 90 feet range
• XLR Male input
• Less than 5ms latency, simultaneuous broadcasts on 6 channels
• Provides clear detailed audio at any volume
• Plug and play, focus on the performance
• 5 hours battery life (rechargeable battery)
• Headphones not included

LINE
Use with mixers or other professional audio devices that send line-level signals.

AUX
Use when connecting consumer audio devices such as portable audio players or computers.

LIVE PERFORMANCE MONITOR
Input the Transmitter with the 1/4”ts conversion into the mixing Aux channel, set transmitter to aux mode.
Or input Transmitter into the mixing XLR main output, for band playing, silent rehearsal etc.. set transmitter to Line mode.

MULTIPLE RECEIVERS
Use one transmitter to send signal to Multiple Receivers – creates monitoring for the entire band. Send the signal from one transmitter to as many receivers as needed simultaneously. Simply set as many receivers as needed to the same channel as the transmitter. OR – In situations where multiple “mixes” are needed on stage, each unit has 6 select-able channels for creating up to 6 individual discrete mixes. If you use more than one transmitter, the receiver can switch between different sound sources by simply changing the channel selector.
